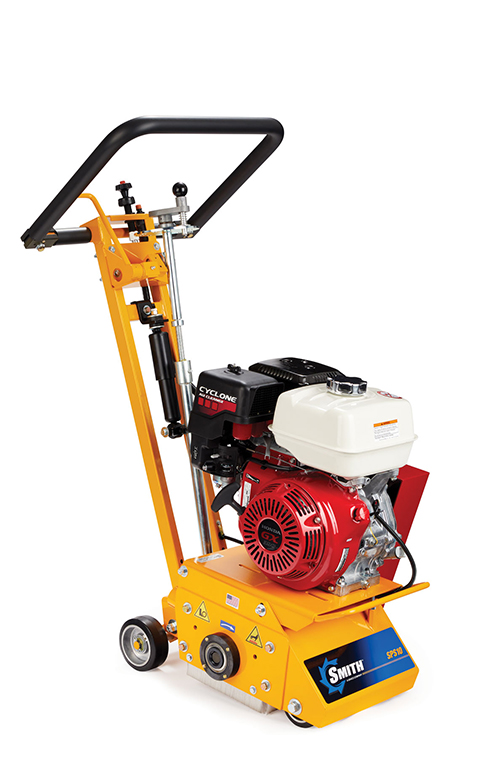

SMITH SPS10 Gasoline-Powered All-Purpose Scarifier
The SMITH SPS10 is the industry’s most popular all-purpose scarifier. Users say the SPS10 outperforms any other competitive model, and can outlast even the toughest operators.
It’s available with many different cutters and accessories to tackle any type of surface-preparation and removal job on asphalt or concrete. You can rely on this easy-to-use, maintain, and operate scarifier/grinder.
Get the high-speed kit for diamond grooving and shaving.
Best for any and all surface-preparation, including groove inlay, removal on asphalt or concrete, sidewalk grinding, and more. Very versatile machine, capable of delivering a wide array of finishes.
The SMITH SPS10 is the industry’s most popular all-purpose scarifier. Users say the SPS10 outperforms any other competitive model, and can outlast even the toughest operators.
It’s available with many different cutters and accessories to tackle any type of surface-preparation and removal job on asphalt or concrete. You can rely on this easy-to-use, maintain, and operate scarifier/grinder.
Get the high-speed kit for diamond grooving and shaving.
Best for any and all surface-preparation, including groove inlay, removal on asphalt or concrete, sidewalk grinding, and more. Very versatile machine, capable of delivering a wide array of finishes.
- Variable depth adjustment
- Engage cam lever
- Vacuum port
- Remote power shutoff
- Ergonomic, vibration-dampening handlebar
- Side-loading drums
- Serviceable bearings
Specifications
Power Options:
SPS10.H13 – 13 HP Honda gasoline engine
SPS10.K14 – 14 HP Kohler gasoline engine
25N986 – 13 HP Honda gasoline engine with Depth Control System
SPS10.E7.230.1 – 7.5 HP Leeson electric motor (230V/1ph/60Hz/35A)
SPS10.E7.230.3 – 7.5 HP Leeson electric motor (230V/3ph/60Hz/18A)
SPS10.E7.380.3.50 – 7.5 HP Leeson electric motor (380V/3ph/60Hz/8A)
SPS10.E7.460.3 – 7.5 HP Leeson electric motor (460V/3ph/60Hz/9A)
- ≤ 10″ wide
- 1/4″ depth/pass
- ≤ 700 SF/hour
- Carbide flails
- Star steel finish cutters
- Star steel beam cutters
- 4N1 carbide strip cutters
- Carbide milling cutters
- Carbide scraping cutters
- Carbide planing picks
- Diamond drums (with high-speed kit)
Options:
- Edger – get as close as 1.27″ (3.23cm)
- Water kit
- Line pointer
- Tach/hour meter
- Front feathering wheel
Size and Weight:
- Weight: 250 lbs / 113.4kg
- Dims: 38″ L x 19″ W x 44″ H
