Channelizer Curb

Tuff Curb XLP

High-Performance, Low-Profile Traffic Separator Curb

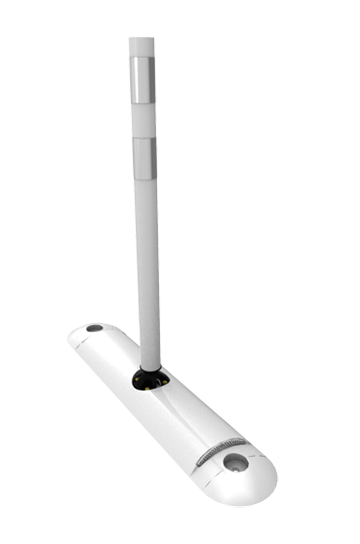

Tuff Curb® XLP is an extreme low profile, high-performance curbing system designed to endure damaging high-speed, high-impact applications. It is ideal for use in cities, on HOV lanes, bridge decks, parking structure decks, for bike lane delineation, or anywhere low-profile traffic separation is required. Tuff Curb® XLP is also approved for installation on curved roadways. Tuff Curb® XLP is MASH 2015 accepted for reimbursement on federally funded projects.

This curb has undergone extensive testing and analysis. It has been recognized for exceeding safety standard NCHRP-350, is Category 1 Self Certified, and MASH 2015 accepted. This rigorous level of testing ensures optimal performance and maximum durability.


  • Injection-molded from a single piece of durable plastic
  • Resistant to UV light, ozone, and hydrocarbons
  • Lightweight and easy to install
  • No water scuppers needed
  • Section spacing can be customized for local conditions to maintain natural water drainage
  • Durable, scratch-resistant glass element reflectors provide 45° of retro-reflectivity in each direction
  • Ultra low profile with smooth edges
  • Category 1 Self Certified
  • MASH 2015 accepted
Socket Type: Fixed, Quick Release, Quarter Turn
Material: Injection - Molded Polyethylene ( Single Piece) Dimensions:40" x 8" x 2"
Weight: 6.5 lbs
Hardware:Zinc-plated socket cap screws and t-nuts (Fixed); Zinc-plated shoulder bolts and quick-release pull pin (Quick Release); Single galvanized keeper pin (Quarter Turn)
Curb Color: White, yellow (integral colorization)
Reflectors: Curved glass-element (45° reflectivity)
Reflector Colors:
White: White or white/red reflector combination
Yellow: Yellow reflectors
Green: White or white/red reflector combination
Compatibility: Fixed, Quick Release uprights
