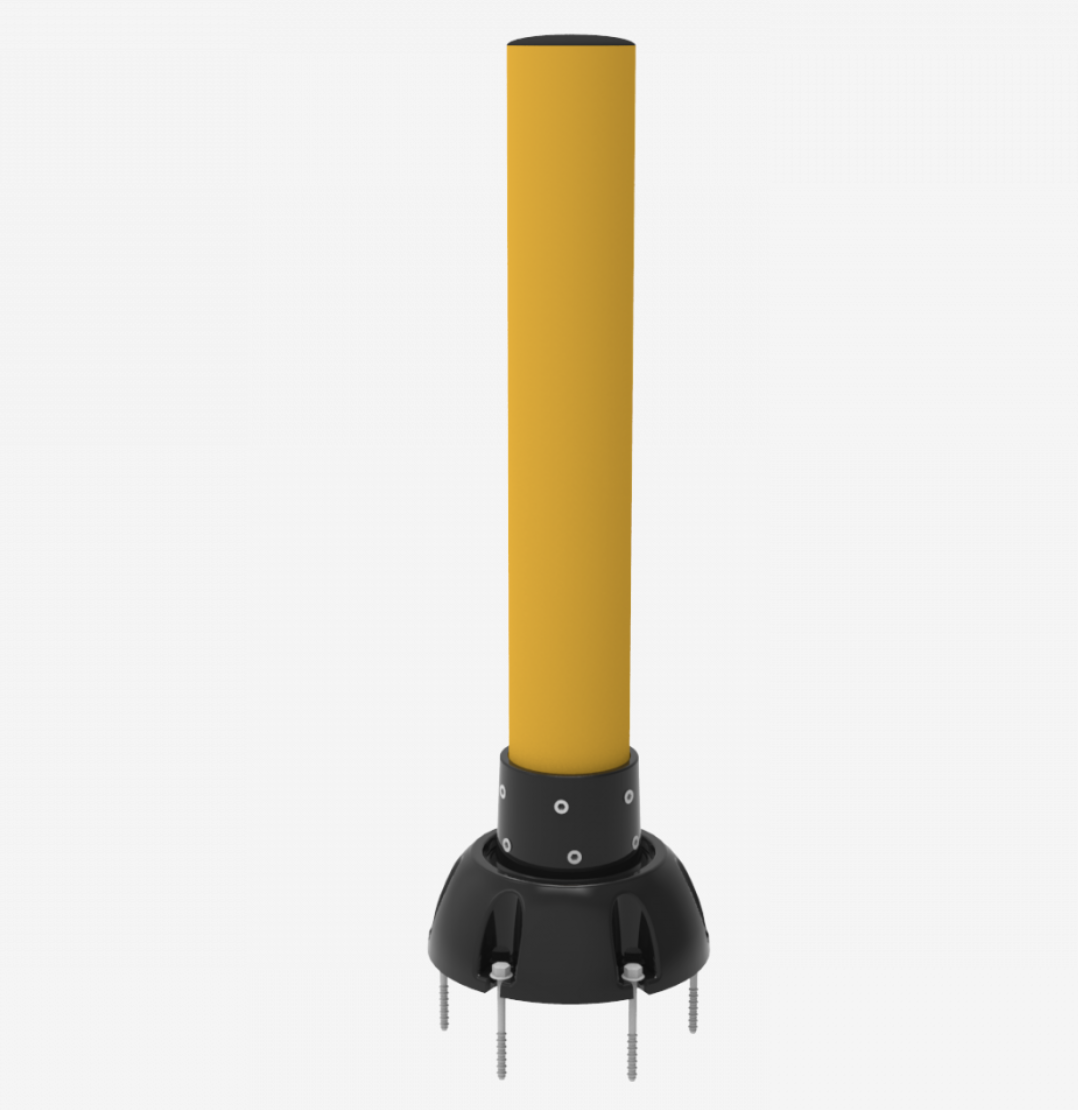

Rebounding Steel Bollard
5" Rebounding Steel Bollard
42" Height
Our revolutionary impactable steel pipe bollards do more than just block access. During a collision, the energy of the impact is progressively absorbed by an elastomer in the base of the bollard. The post tilts slightly with impact and then returns upright, leaving the guard intact and ready to perform again.
Our SlowStop® rebounding steel bollards are successfully used in commercial locations, industrial environments, logistic sites, and for traffic control situations. Their strength rivals that of traditional embedded bollards with lower costs and less hassle. Our bollards are surface mounted in approximately 15 minutes and are immediately ready for use once installed. Each kit comes with everything needed to install a single rebounding bollard.
Ideal for heavier applications such as cars, large trucks, and typical fork lifts. Hardware and anchors included. Further technical information including AutoCAD formats, specs, and BIM files can be found in our Resources section under Technical Specifications.
Our revolutionary impactable steel pipe bollards do more than just block access. During a collision, the energy of the impact is progressively absorbed by an elastomer in the base of the bollard. The post tilts slightly with impact and then returns upright, leaving the guard intact and ready to perform again.
Our SlowStop® rebounding steel bollards are successfully used in commercial locations, industrial environments, logistic sites, and for traffic control situations. Their strength rivals that of traditional embedded bollards with lower costs and less hassle. Our bollards are surface mounted in approximately 15 minutes and are immediately ready for use once installed. Each kit comes with everything needed to install a single rebounding bollard.
Ideal for heavier applications such as cars, large trucks, and typical fork lifts. Hardware and anchors included. Further technical information including AutoCAD formats, specs, and BIM files can be found in our Resources section under Technical Specifications.
Specifications
Color: RAL 1023 Traffic Yellow
Diameter: 5.56” (5” ANSI Schedule 40)
Overall Height:42"
Product Weight:110 lb
Energy Absorption:14,000 joules / 10,326 ft.-lb.
Temperature Rating:-40°F - 150°F
Pipe Coating: 60 µm Galvanized + 150 µm Polyester Outdoor Powder Coating
Cast Iron Coating:Environmentally Friendly Water-based E-Coat + Polyester Outdoor Powder Coating
Set Screws:Six (6) M16
Anchor Screws: Six (6) 5/8” x 5-1/2” Concrete
Cap: Black Plastic
Diameter: 5.56” (5” ANSI Schedule 40)
Overall Height:42"
Product Weight:110 lb
Energy Absorption:14,000 joules / 10,326 ft.-lb.
Temperature Rating:-40°F - 150°F
Pipe Coating: 60 µm Galvanized + 150 µm Polyester Outdoor Powder Coating
Cast Iron Coating:Environmentally Friendly Water-based E-Coat + Polyester Outdoor Powder Coating
Set Screws:Six (6) M16
Anchor Screws: Six (6) 5/8” x 5-1/2” Concrete
Cap: Black Plastic
