Thermoplastic Equipment

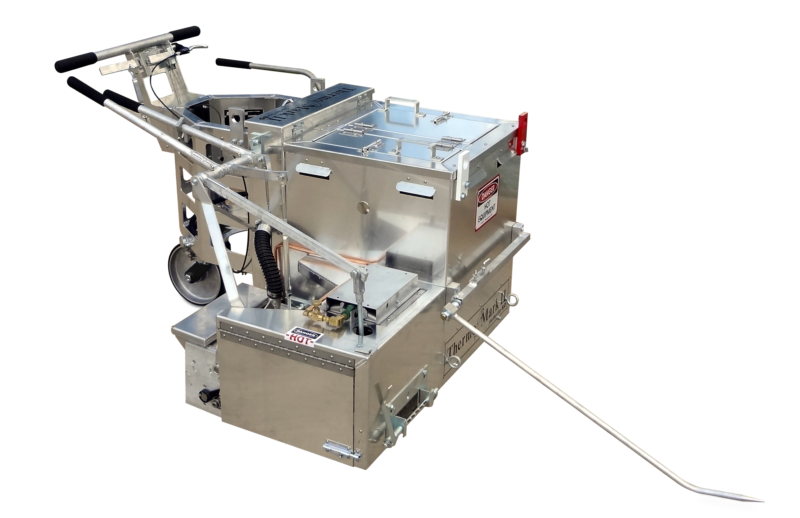

Thermomark 300
The ThermoMark™ Series Handliner is built with extremely durable aluminum construction. Exclusive features like insulated reservoirs and a modular design have made them the preferred thermoplastic applicators with professionals throughout the industry.
We offers the industry’s only aluminum Handliner that is compatible with our steel die.
We offers the industry’s only aluminum Handliner that is compatible with our steel die.
Specifications
MATERIAL CAPACITY: 300 LBS / 114 KG
APPLICATION DIE WIDTH: MIN. 4", MAX.12" STANDARD
CUSTOM WIDTH AND DUAL LINE DIES AVAILABLE: CUSTOM WIDTH AND DUAL LINE DIES AVAILABLE
HEATING TYPE: PROPANE (20 LB. BOTTLE REQUIRED)
DIE HEATER: INFRARED
EMPTY WEIGHT: 315 LBS / 143 KG
MAIN BURNER: TWIN RANSOME / 40000 BTU
GAS CONTROL: HONEYWELL
BEAD DISPENSER: Wheel driven beader with application rate proportioned to ground speed
DISP. WIDTH ADJUSTABLE: 4", 6", 8", 12" AND OFF POSITION
MANUAL FRONT POINTER: ADJUSTS FOR ALL DIE SIZES
WHEELS: Dual solid front and single solid rear wheels provide smooth operation
MATERIAL AGITATION: MANUAL / HORIZONTAL SHAFT / REVERSE PITCH / FLOW PADDLES
SHIPPING WEIGHT: 500 LBS. / 227 KG CRATED
CONSTRUCTION: ALUMINUM WITH BOLT-TOGETHER ASSEMBLY
TURNING RADIUS: 360°
BEAD CAPACITY RESERVOIR: 65 LBS. / 29.5 KG
DIMENSIONS: 57"L X 43.25"W X 37"H
APPLICATION DIE WIDTH: MIN. 4", MAX.12" STANDARD
CUSTOM WIDTH AND DUAL LINE DIES AVAILABLE: CUSTOM WIDTH AND DUAL LINE DIES AVAILABLE
HEATING TYPE: PROPANE (20 LB. BOTTLE REQUIRED)
DIE HEATER: INFRARED
EMPTY WEIGHT: 315 LBS / 143 KG
MAIN BURNER: TWIN RANSOME / 40000 BTU
GAS CONTROL: HONEYWELL
BEAD DISPENSER: Wheel driven beader with application rate proportioned to ground speed
DISP. WIDTH ADJUSTABLE: 4", 6", 8", 12" AND OFF POSITION
MANUAL FRONT POINTER: ADJUSTS FOR ALL DIE SIZES
WHEELS: Dual solid front and single solid rear wheels provide smooth operation
MATERIAL AGITATION: MANUAL / HORIZONTAL SHAFT / REVERSE PITCH / FLOW PADDLES
SHIPPING WEIGHT: 500 LBS. / 227 KG CRATED
CONSTRUCTION: ALUMINUM WITH BOLT-TOGETHER ASSEMBLY
TURNING RADIUS: 360°
BEAD CAPACITY RESERVOIR: 65 LBS. / 29.5 KG
DIMENSIONS: 57"L X 43.25"W X 37"H
